| Place of Origin | China |
| Brand Name | LIMPIDSCAPE |
| Model Number | CF25 |

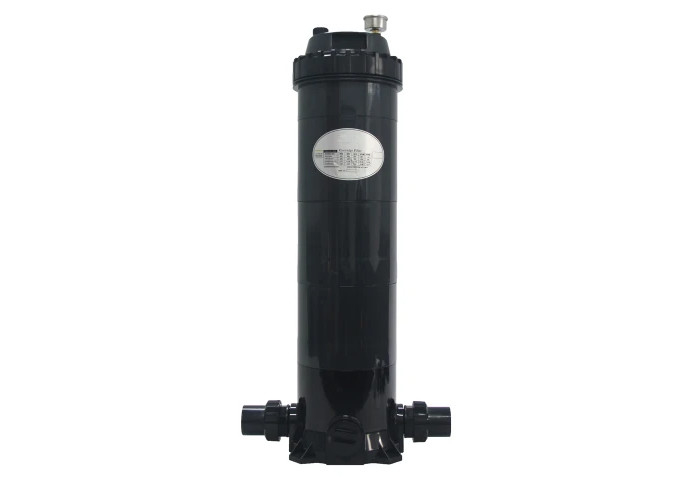

Swimming Pool Cartridge Filter CF25
Descriptions of Swimming Pool Cartridge Filter:
Cartridge filtration is an effective trouble-free proven method of filtration Pool water enters the filter and passes through a polyester single element cartridge. Suspended particles are trapped and the water is returned to the pool. As the build-up of dirtin the elementincreases so the water pressure rises and the flor decreases When the pressure reaches an unacceptable level. the element must be removed and cleaned(spray washing with a common garden hose is generally sufficient).
Performance of Swimming Pool Cartridge Filter:
Model | H(mm)A | H(mm) B | DM(mm)C | DM(mm)D | Filtration Area (m2) | Flow (m3/h) |
| CF25 | 445 | 387 | 225 | 397 | 2.25 | 5.5 |
| CF50 | 625 | 567 | 225 | 397 | 4.63 | 11.4 |
| CF75 | 805 | 747 | 225 | 397 | 7 | 17 |
| CF100 | 985 | 927 | 225 | 397 | 9.38 | 22.9 |
| CF150 | 1165 | 1107 | 225 | 397 | 13.72 | 33.4 |
Installation Sketch of Pool Cartridge Filter:
